Couldn't load pickup availability
Free Standard Shipping via Australian Post. Express Shipping calculated at checkout.
Engineered for peak performance, the X-Filtra OXF1096 Oil Filter ensures exceptional filtration for Lexus ES LM NX UX Toyota Camry Corolla Highlander Kluger RAV 4 Yaris Yaris Cross. Featuring cutting-edge synthetic Ahlstrom® media, nanofiber layers, and glass fibre curing technology, this high-efficiency Oil Filter captures contaminants as small as 4 microns—preventing premature oil oxidation and extending engine life.
Designed to meet OEM specifications, it guarantees seamless compatibility while protecting your new car warranty. With premium NBR, AEM, and FKM rubber components, this filter resists oil, abrasion, and high temperatures, delivering long-lasting reliability in the toughest conditions. Manufactured using an environmentally certified process, it minimises environmental impact while ensuring exceptional engine protection.
An Australian brand and trusted name in the auto aftermarket, offering a comprehensive range of top‑rated, ISO‑certified automotive components backed by an Australia‑wide warranty and a commitment to exceptional quality, reliability, and value.
Clean oil is vital to keeping your engine healthy and running smoothly. X-Filtra® oil filters, available in both spin-on and cartridge formats, are engineered to remove harmful contaminants and maintain peak performance. Trusted by Australian drivers for over a decade, these OEM-compliant filters use advanced technology to capture particles as small as 4 microns, preventing oil oxidation and extending engine life.

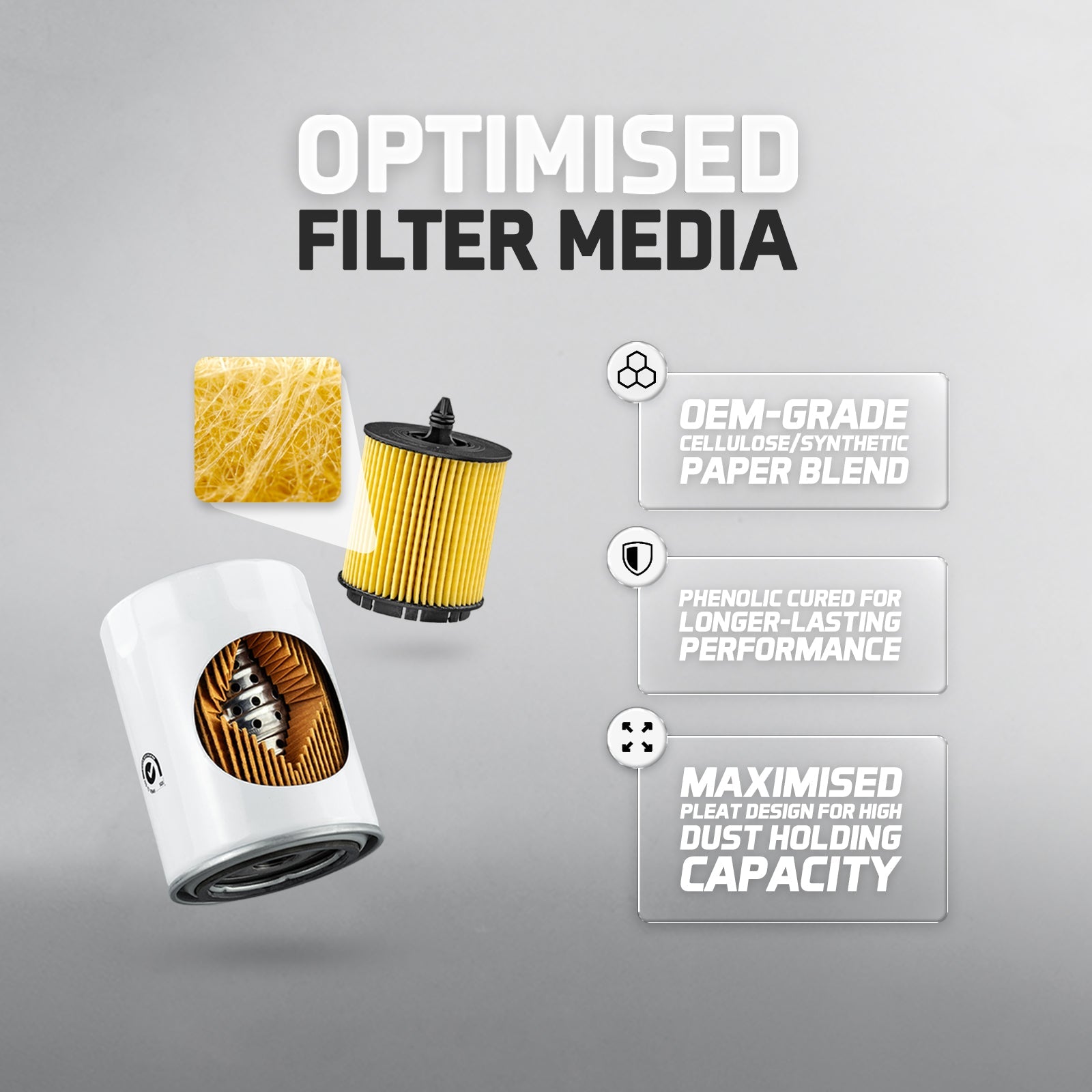

Spin-on models feature premium synthetic Ahlstrom® media, nanofiber layers, and a glass fibre curing filter to trap even the tiniest impurities, protecting key engine components. Cartridge models utilise patented filtration technology with Aoslong and HV paper media to provide superior oil protection and a longer service life.

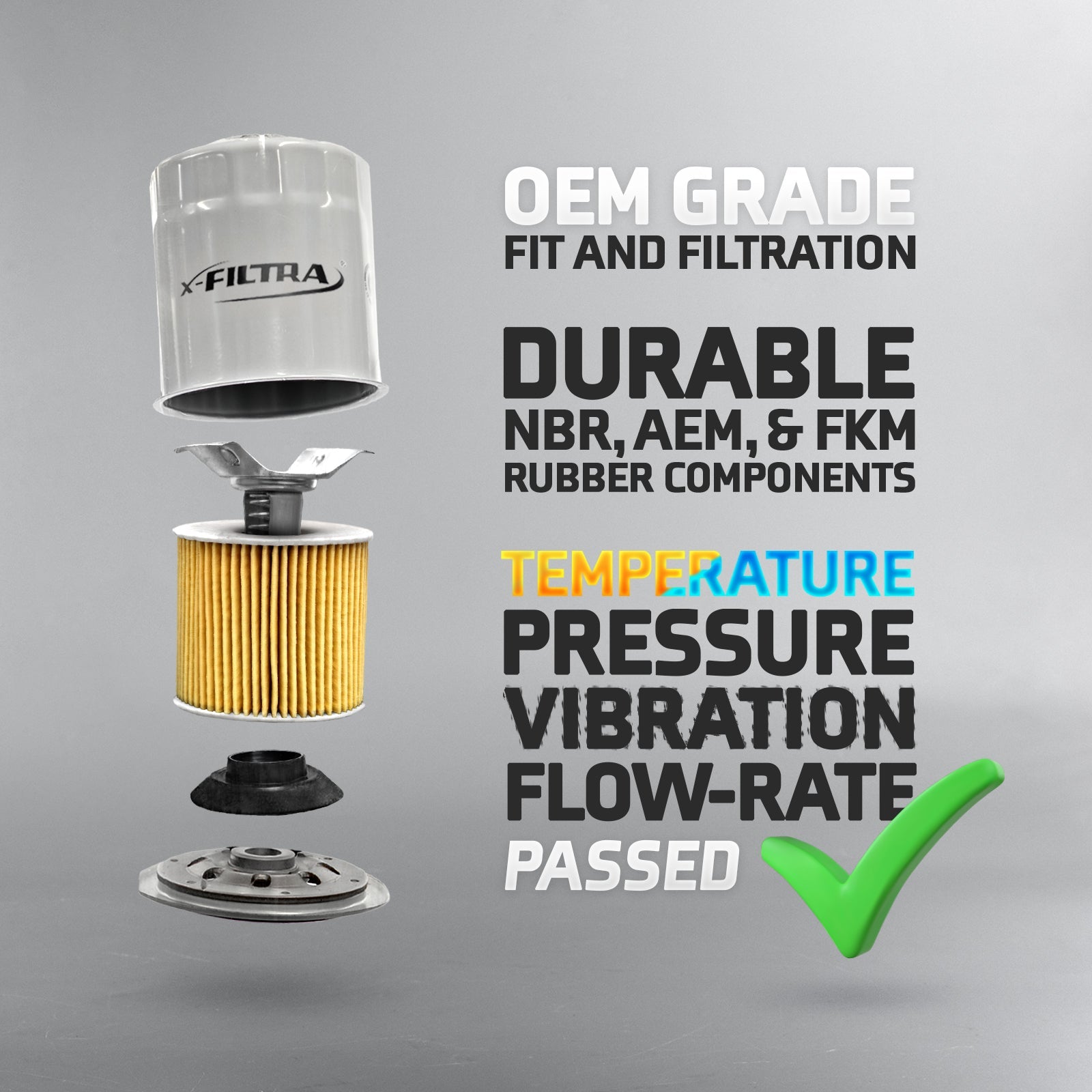

Constructed with high-quality NBR, AEM, and FKM rubber components, these oil filters offer excellent resistance to oil, abrasion, and high temperatures. Precision engineering, rigorous quality control, and advanced manufacturing techniques ensure long-lasting performance under all conditions. Backed by an Australian warranty, they offer proven reliability and peace of mind on every journey.
Designed to meet or exceed OEM specifications, X-Filtra® oil filters guarantee compatibility and seamless integration with your vehicle, preserving your new car warranty while delivering optimal engine performance.
As a top-rated seller, we deliver premium quality, competitive pricing, and fast local support with tracked deliveries. Globally validated performance and tailored bulk solutions available.
| Make | Model | Series | Variant | Year |
|---|---|---|---|---|
| Lexus | UX | H10 SUV 250h (MZAH10) | FWD Full Hybrid 2.0L 4cyl 131kW M20A-FXS | 2018 - 2022 |
| Lexus | UX | H15 SUV 250h E-Four (MZAH15) | AWD Full Hybrid 2.0L 4cyl 131kW M20A-FXS | 2018 - 2022 |
| Lexus | LM | WH15 MPV 500h E-Four (TAWH15) | AWD Full Hybrid 2.4L 4cyl 270kW T24A-FTS | 2023 - 2024 |
| Lexus | LM | WH10 MPV 350h (AAWH10) | FWD Full Hybrid 2.5L 4cyl 184kW A25A-FXS | 2023 - 2024 |
| Lexus | ES | AXZH10 Sedan 300h | FWD Full Hybrid 2.5L 4cyl 131kW | 2018 - 2021 |
| Lexus | ES | AXZH10 Sedan 300h | FWD Full Hybrid 2.5L 4cyl 131kW A25A-FXS,A25B-FXS | 2019 - 2022 |
| Lexus | NX | A2,H2 SUV 350h (AAZH20) | FWD Full Hybrid 2.5L 4cyl 179kW A25A-FXS | 2021 - 2024 |
| Lexus | NX | A2,H2 SUV 350h E-Four (AAZH25) | AWD Full Hybrid 2.5L 4cyl 179kW A25A-FXS | 2021 - 2024 |
| Lexus | NX | A20 SUV 250 (AAZA20) | FWD Petrol 2.5L 4cyl 151kW A25A-FKS | 2021 - 2024 |
| Toyota | RAV 4 | AH50 SUV 2.5 Hybrid (AXAH52) | FWD Full Hybrid 2.5L 4cyl 160kW A25A-FXS | 2018 - 2024 |
| Toyota | RAV 4 | SUV 2.5 Hybrid AWD (AXAH54, AXAL54) | AWD Full Hybrid 2.5L 4cyl 163kW A25A-FXS | 2018 - 2024 |
| Toyota | RAV 4 | AXAH54 SUV 2.5 Hybrid AWD | AWD Full Hybrid 2.5L 4cyl 131kW A25A-FXS | 2020 - 2022 |
| Toyota | RAV 4 | AXAH54 SUV 2.5 Hybrid AWD | AWD Full Hybrid 2.5L 4cyl 131kW | 2018 - 2019 |
| Toyota | RAV 4 | A50 SUV 2.0 VVTi (MXAA52) | FWD Petrol 2.0L 4cyl 127kW M20A-FKS | 2018 - 2024 |
| Toyota | RAV 4 | A50 SUV 2.5 VVTi AWD (AXAA54) | AWD Petrol 2.5L 4cyl 152kW A25A-FKS | 2018 - 2024 |
| Toyota | Corolla | A12 Hatchback 2.0 (MZEA12) | FWD Petrol 2.0L 4cyl 125kW M20A-FKS | 2018 - 2022 |
| Toyota | Corolla | A12 Sedan 2.0 VVTi (MZEA12) | FWD Petrol 2.0L 4cyl 125kW M20A-FKS | 2019 - 2022 |
| Toyota | Yaris | PA10,PH10 Hatchback 1.5 (MXPA10, MXPA11, MXPA12) | FWD Petrol 1.5L 3cyl 88kW M15A-FKS | 2020 - 2024 |
| Toyota | Yaris | PA10,PH10 Hatchback 1.6 GR 4WD (GXPA16) | AWD Petrol 1.6L 3cyl 200kW G16E-GTS | 2020 - 2024 |
| Toyota | Yaris | PA10,PH10 Hatchback 1.5 Hybrid (MXPH10, MXPH11) | FWD Full Hybrid 1.5L 3cyl 85kW M15A-FXE | 2020 - 2024 |
| Toyota | Yaris Cross | B10 SUV 1.5 (MXPB10) | FWD Petrol 1.5L 3cyl 88kW M15A-FKS | 2020 - 2022 |
| Toyota | Yaris Cross | MXPJ15 SUV 1.5 Hybrid All-wheel Drive | AWD Full Hybrid 1.5L 3cyl 68kW | 2020 - 2022 |
| Toyota | Yaris Cross | MXPJ15 SUV 1.5 Hybrid All-wheel Drive | AWD Full Hybrid 1.5L 3cyl 68kW M15A-FXE | 2021 - 2021 |
| Toyota | Yaris Cross | MXPJ10 SUV 1.5 Hybrid | FWD Full Hybrid 1.5L 3cyl 68kW | 2021 - 2022 |
| Toyota | Yaris Cross | MXPJ10 SUV 1.5 Hybrid | FWD Full Hybrid 1.5L 3cyl 68kW M15A-FXE | 2020 - 2020 |
| Toyota | Highlander | TXUA70R SUV 2.4 VVTi (TXUA70R) | FWD Petrol 2.4L 4cyl 198kW T24A-FTS | 2022 - 2024 |
| Toyota | Highlander | TXUA75R SUV 2.4 VVTi AWD (TXUA75R) | AWD Petrol 2.4L 4cyl 198kW T24A-FTS | 2022 - 2024 |
| Toyota | Kluger | U70 SUV 2.5 Hybrid AWD (AXUH78) | AWD Full Hybrid 2.5L 4cyl 184kW A25A-FXS | 2021 - 2024 |
| Toyota | Camry | VH70 Sedan 2.5 Hybrid (AXVH71R) | FWD Full Hybrid 2.5L 4cyl 160kW A25A-FXS | 2017 - 2022 |
| Toyota | Camry | V70,VH70 Sedan 2.5 | FWD Petrol 2.5L 4cyl 152kW A25A-FKS | 2021 - 2024 |
| General | |
|---|---|
Key Features |
X-Filtra Filter (Spin-on)
|
Barcode |
9348420020453
|
Brand |
x-Filtra
|
Classic Part |
No
|
Part Number |
oxf1096
|
Part Position |
Front
|
Performance Part |
No
|
Quantity in Package |
1
|
Rating |
(102)
|
Warranty |
Yes
|
Service Interval (whichever comes first) |
10,000KM or 12 Month
|
| Item Dimensions | |
Item Length |
68 mm
|
Item Width |
68 mm
|
Item Height |
60 mm
|
Item Inside Diameter Inside or Seal Diameter (For Spin-on Filters)
|
62 mm
|
Item Outside Diameter |
68 mm
|
| Package Dimensions | |
Package Length |
70 mm
|
Package Width |
70 mm
|
Package Height |
70 mm
|
| Interchangeable | |
MANN No. |
Not Applicable
|
OEM No. |
90915-10009
|
Ryco No. |
Z1096
|
Sakura No. |
C-47030
|
Wesfil No. |
WCO242NM
|
| Filters | |
Filter Type |
Spin-On
|
Items Included |
Seal
|
Material |
Metal
|
Mounting Style |
Bolt-On
|
